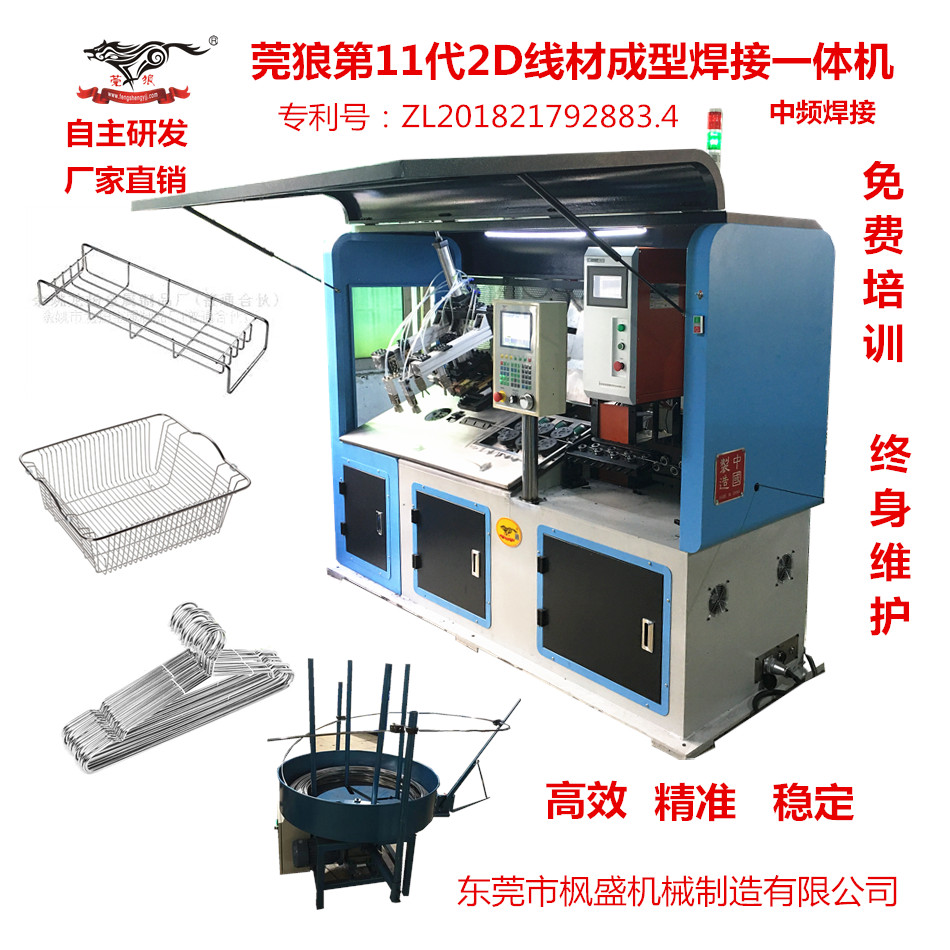

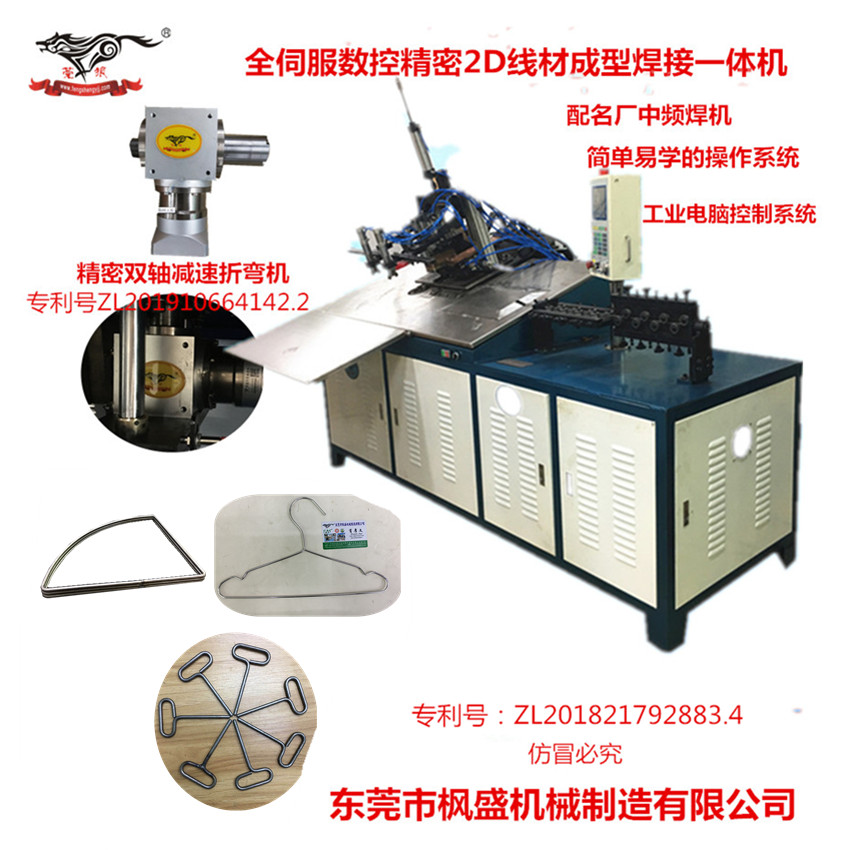

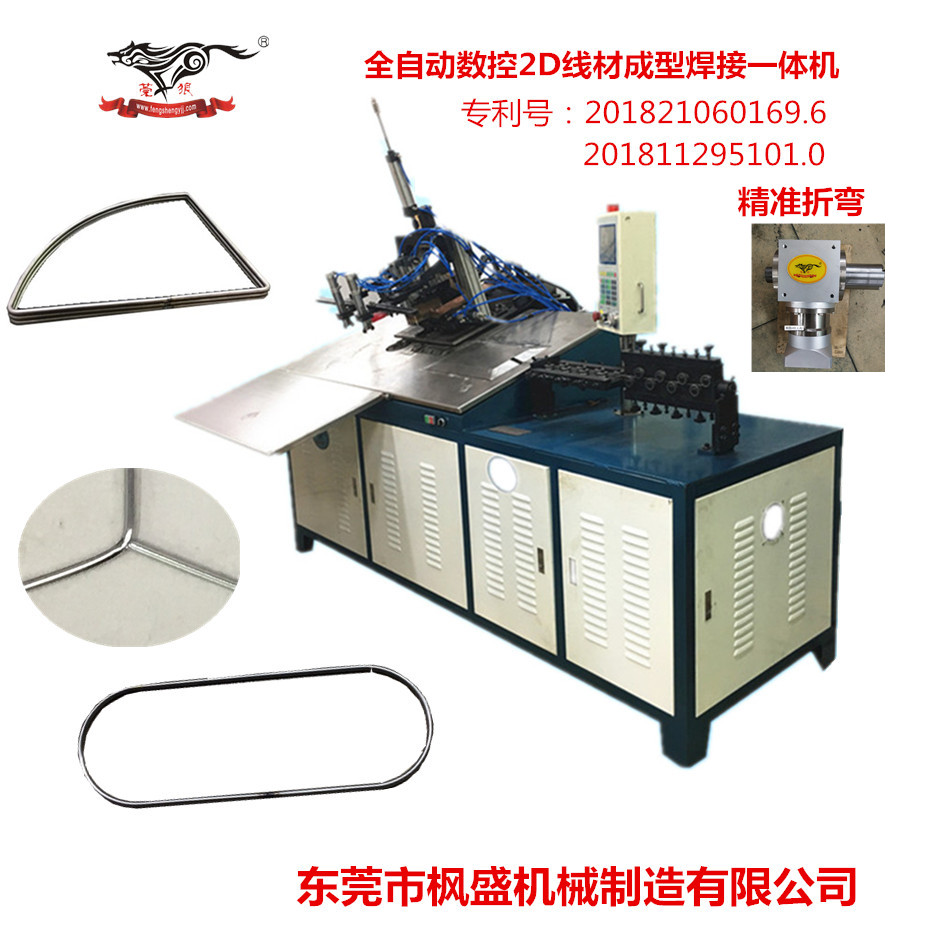

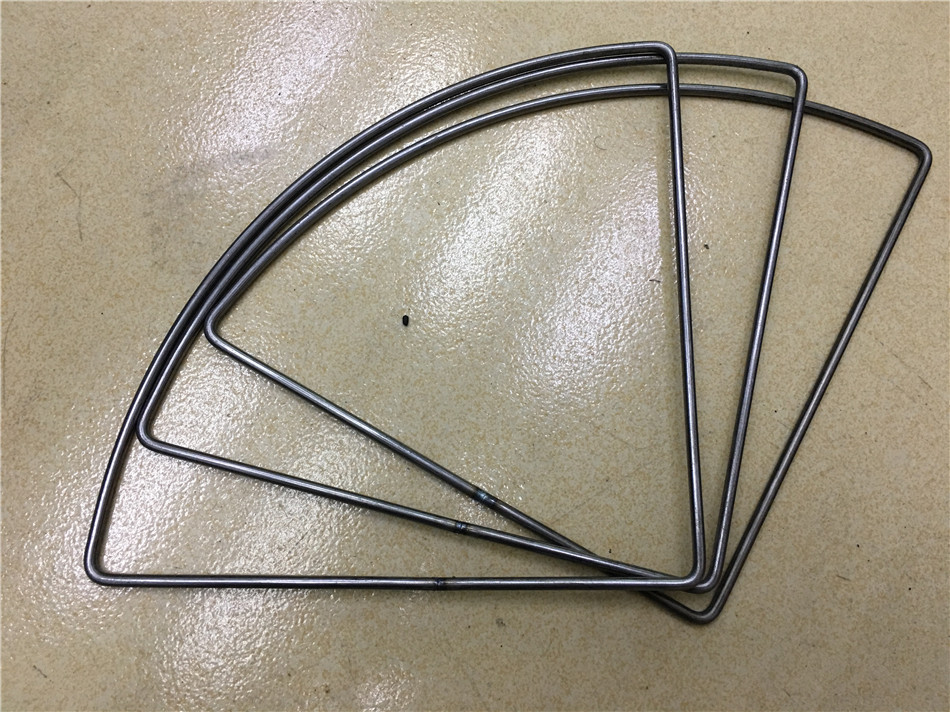

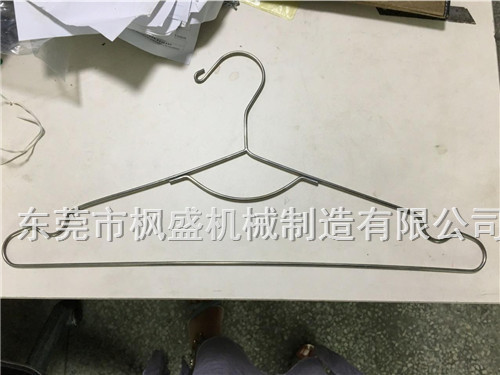

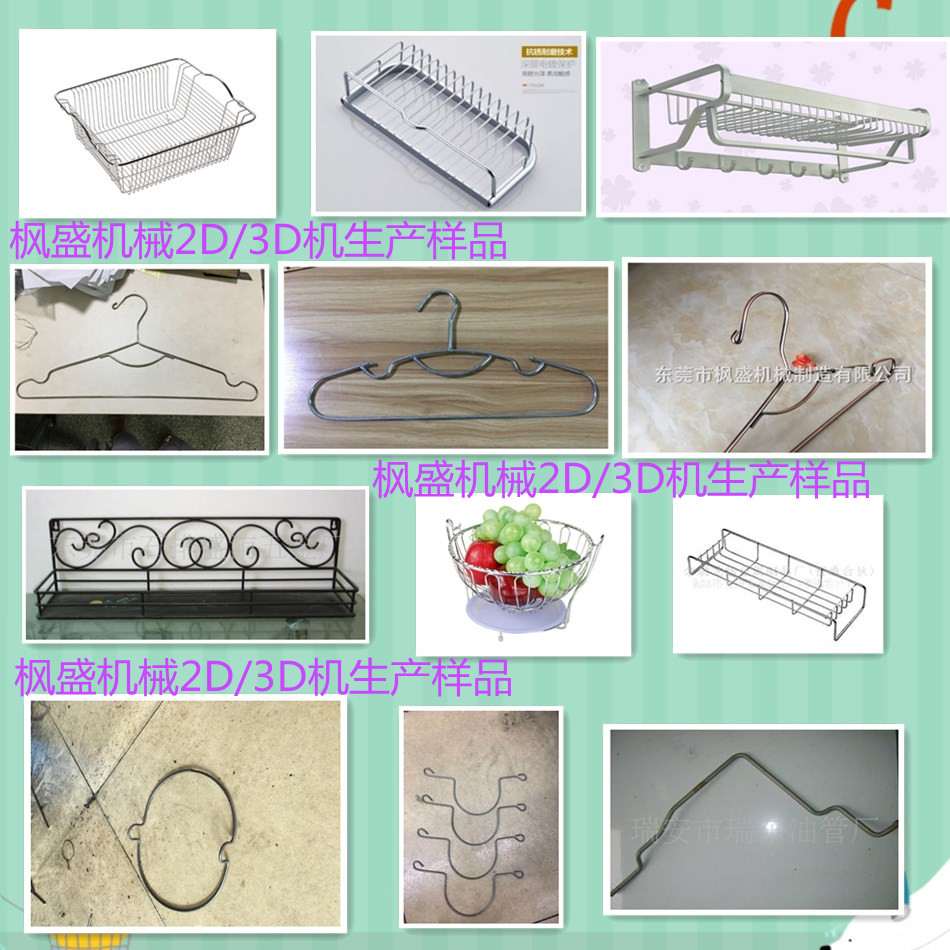

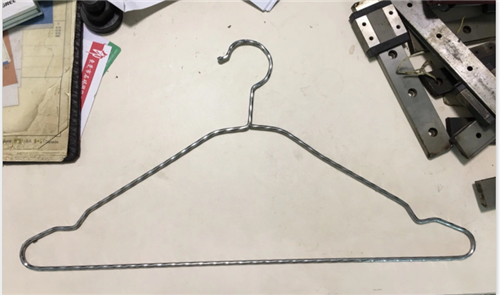

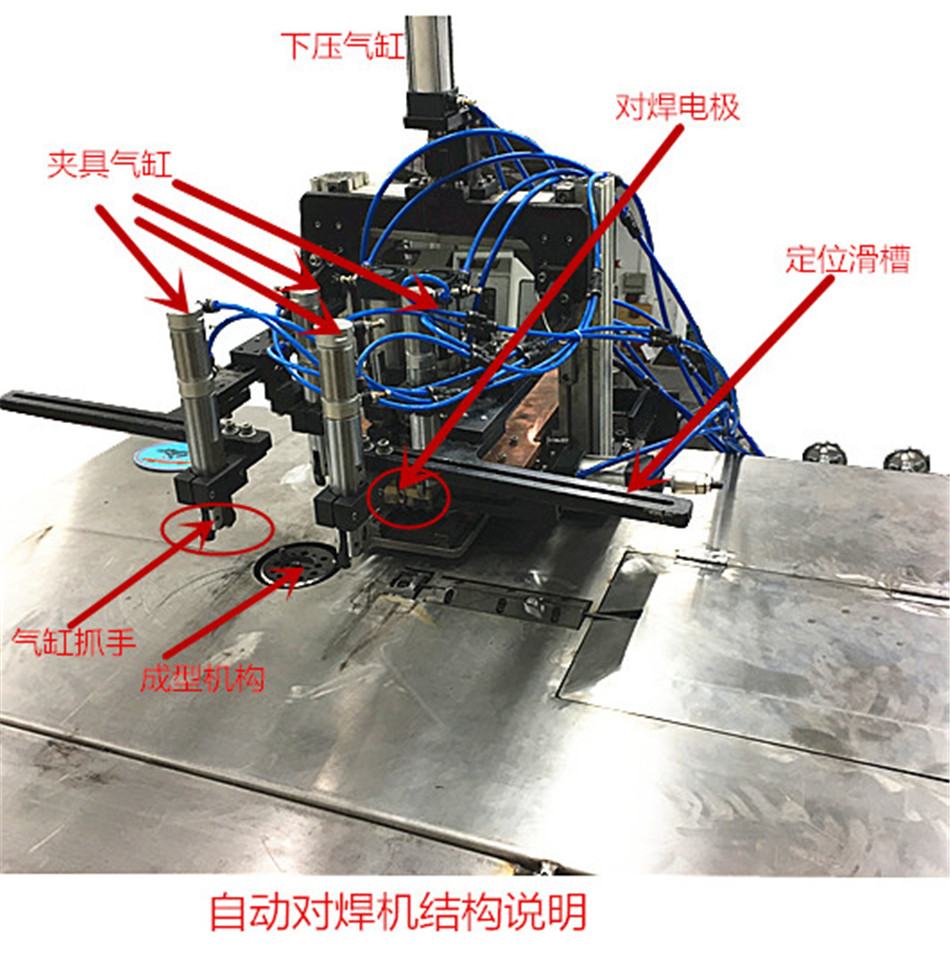

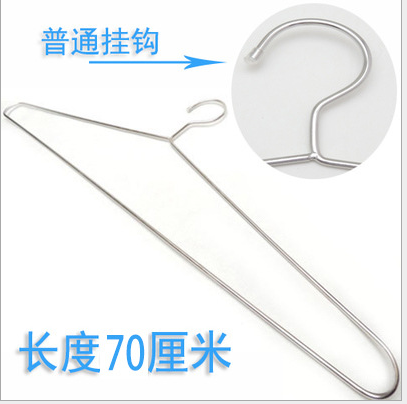

数控2D高速线材成型双面氩弧焊一体机

咨询热线:18607697148

产品详细



-

一、 设备型号及参数:(Equipment model and parameters:)

1、 设备名称:全自动数控2D线材成型机(Equipment name: Full-automatic CNC 2D wire forming machine)

2、 设备型号(Equipment model)FS-DG202-18-09

3、 加工线材直径规格, 普通铁线,(加大线径可定制)

Available processing diameterΦ2-Φ8mm Regular iron wire (Larger wire diameter can be customized)

4、 控制轴数:4   (Number of control shafts: 4)

5、 送线电机功率:4.5KW1601:5减速机(Power of wire feeding motor: 4.5kw, equipped with type 160  1:5 reducer)

6、 折弯电机功率:3.8KW1421:20减速机(Bending motor power: 3.8kw with type 142  1:20 reducer)

7、 内外模升降电机功率:0.75KW901:10减速机(Motor power of inner-outer mold lifter: 0.75KW, equipped with type 90  1: 10 reducer)

8、 切刀电机功率:1.5KW1201:10减速机(Cutter motor power: 1.5kw with type 120  1:10 reducer)

9、 最大送线速度:90米/分钟,60/分钟(带减速机)(Maximum wire feeding speed: 90m / min), 60m / min (with reducer)

10、 送线精度:9000mm±0.2/6000mm±0.2(带减速机)(Wire feeding accuracy: 9000mm ± 0.2/ 6000mm ± 0.2 (with reducer)

11、 电动送线架最大承重:0.5T-3T(大型放线架)(Maximum bearing capacity of electric wire feeder: 0.5T-3T (large-scale wire feeder)

12、 电动送线架外圆直径:φ1010mmDiameter of electric wire feeders circumcircle: φ 1010mm

13、 电动送料架电机功率:1.5KWWPWDK080# 1:60减速机(Motor power of the electric cradle : 1.5kw with wpwdk080 #  1:60 reducer

14、 主机使用电压:三相380VVoltage of the main machine : three-phase 380V

15、 主机器重量:900kgWeight of the main machine :900kg

16、 主机器尺寸:2500mm X 1650mm X 1800mm(长度X宽度X高度)(Measurement of the main machine : 2500mm x 1650mm x 1800mm (length x width x height)

17、 电动送料架重量:200Kg(Weight of the electric cradle: 200kg)

18、 电动送料架尺寸:1500mmX1500mmX940mm(长度X宽度X高度)(Measurement of the electric cradle: 1500mmx1500mmx940mm) (length x width x height)

二、 使用条件及说明:(Operation conditions and instructions):

1、 电源电流及电压1秒种以上波动应保证在±5%以内,设备可以正常运行。(The power supply current and voltage fluctuation for more than one second shall be within ± 5%, under this circumstance, the equipment can operate normally).

2、 自动送料架与主机间隔距离2000mm以上。(The automatic cradle and the main machine shall be at least 2000mm apart).

3、 设备配备有USB接口,可实现数据读取。(The device is equipped with USB interface for data reading)

4、 电脑操作系统可以接入互联网,实现远程控制和操作。生产效率及产量在人机界面有显示,达到规定产量后设备可自动停机。(The computer operating system can be connected to the Internet for remote control and operation. The production efficiency and output are displayed on the human-machine interface, and the equipment can be automatically shut down after reaching the pre-set output).

三、 其他(other)

1、 设备使用后齿轮及导轨滑块要定期加润滑油脂,周期7-60个工作日。(After the equipment is used, add lubricating grease to the gear, guide rail and slide block every  7- 60  working days)

A、设备价目表:(Equipment price list)

序号

No

货品内容

(Product content)

数量QTY

单位UNIT

经销价格(含增值税)Quotation (including VAT)

1

   2D线材成型机+双面氩弧焊机

(WS-250)2D wire forming machine + double-sided argon arc welding machine (WS-250)

1

SET

¥118000(包含)

$17800, VAT-included

2

配套模具

(Attached mold)

1

SET

赠送(For free)

3

免费提供1人培训
(Free training for 1 personnel)

2

DAY

客户方包食宿

Food and lodging are provided by the client

4

运输及保险费(国内运输)Freight and insurance (domestic transportation)





不含运费(Freight excluded)

        B:配件品牌及产地:(Brand and origin of components):

配件名称

Component name

品牌产地

Brand origin



配件名称

Component name

品牌产地

Brand origin

伺服电机

Servo motor

德普信

DEPUXIN



控制系统

Control system

莞狼控制系统

GUANLANG

减速机

Reducer

星维达/卓兰

XINGWEIDA/ZHUOLAN

轴承

Bearing

日本NSK

Japan

变压器

Transformer

金环龙

JINHUANLONG

变频器

Frequency converter

鸿顺佳

HONGSHUNJIA

机座材质

Frame material

A3/45#/201不锈钢

A3/45#/201

stainless steel

电气配件

Electrical accessories

正泰

CHINT

C:易损件随机配送清单:(Random distribution list of vulnerable parts)

序号

NO

名  称

NAME



单位

UNIT

数量

QTY

备注

NOTE

2

过线咀

Wire guide



SET

1

根据客户提供线径配送相应的配套模具

(The mold we distribute can be customized according to clients demand)

3

切刀

Cutter



SET

1

4

模具针套

Mold of punch-pin and its mate



SET

1

5

内模

Inner mold



SET

1

6

调直轴承

Straightening bearing



PIECE

10

正常配送10个

Standard distribution

 10 pieces

7

外模

Outer mold



PIECE

1

45# steel

8

工具箱

Tool-kit



SET

1

内配有扳手

Wrench inside
